1. Introduction:

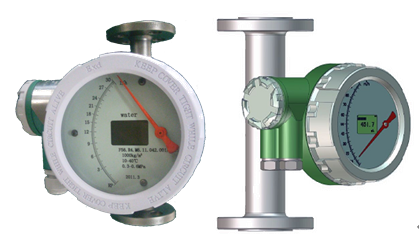

HFVAMT metal rotor flowmeters are rugged and durable, with an accuracy of 0F 1% for all metal flowmeters. The HFVAMT is made of stainless steel and is used to measure various gases and liquids. HFVAMT can be configured with a variety of linings for corrosive liquid and gas applications. The flow indication is provided by magnetic coupling in which a magnet encapsulated in a float is coupled to a rotatable magnet located at the rear of the indicator to turn the dial indicator mounted on the meter. Optional accessories include 4-20 mA output with HART microprocessor transmitter, with or without alarm and pulse output for tantalization. A variety of mechanical counters are also available.
2. Technical features:
♦ Multi-functional building, all gases, liquids
♦ Fast response time, high resolution, 5 to 50 milliseconds
♦ Wide temperature range from -40 to +400°C
♦ Pressure up to 420 bar
♦ Pipeline connection has flange, thread, three cards and so on.
♦ Electronic products are intrinsically safe EAX IA II CT5, or Ex Proof EAX D II CT6
♦ Available with special materials, such as Hastelloy B and C, Titanium, Copper, Aluminum, etc.
♦PTFE and other gaskets are available
♦ calibration NIST '
3. Parameter specification:
♦ Specifications :15 ~ 250mm
♦ Measurement range:
♦ water (20 ℃) 10 ~ 300000 l/h
♦ Air (20℃, 0.1013MPa) 0.7 ~ 3.000 m3/h
♦ Temperature: mechanical counter -80 to +400℃
Electronic transmitter -40 to +250℃
♦Pressure: DN15 ~ DN50 4.0 MPa
DN65 ~ DN250 1.6 MPa
♦ Process connection: ANSI, DIN, JIS flange
Threading and hygiene
♦ turndown thewire: 10:1
♦ Accuracy: mechanical counter 1.5%FS
♦Electronic transmitter 1.0%FS
♦ Viscosity: DN15 < 30 MPa. S,
Dn25 mPa.s < 250
Dn50 - 250 < 300 mPa.s
♦ Hazard Approval: EX IA II CT5
♦ Protection grade :IP65/NEMA 4X
♦ Ambient temperature: mechanical counter -40 to 120℃
Electronic transmitter -40 ~ 60℃
♦ Cable interface: M20 × 1.5
1/2 "G
1/2 " NPT
3/4 "G
3/4 " NPT
4. Table of Selection Specifications:
HFVAMT- | **- | **- | **- | **- | **- | **- | **- | **- | **- | ** | ** | ** | Description |
Diameter (for float contact factory) | **** | Size | |||||||||||
Bottom enter, Top exit | FA |
Meter Structure |
|||||||||||
Bottom enter, Top exit horizontal | FBT | ||||||||||||
Bottom enter horizontal, Top exit horizontal | FCZ | ||||||||||||
Right enter, Left exit | FDR | ||||||||||||
Left enter, Right exit | FD | ||||||||||||
304SS | 304 | Material | |||||||||||
316 SS | 316 | ||||||||||||
316L SS | 316L | ||||||||||||
304SS + PTFE liner - up to 100 deg C | PTFE | ||||||||||||
Titanium | TI | ||||||||||||
Hast C | HC | ||||||||||||
Hast B | HB | ||||||||||||
Liquid | L | Fluid | |||||||||||
Gas | G | ||||||||||||
*** | ** | Float No. | |||||||||||
Local indicator, circle house | M1 | Indicator | |||||||||||
Intelligent indicator, circle house (Exid), 24 VDC and 4-20mA, up to 250 deg C |
M2 | ||||||||||||
-80~120 deg C | N |
Operating Temperature |
|||||||||||
120-150 deg C | 1 | ||||||||||||
150-200 deg C | 2 | ||||||||||||
200-250 deg C | 3 | ||||||||||||
250-300 deg C | 4 | ||||||||||||
300-400 deg C | 5 | ||||||||||||
Standard | NN |
Operating Pressure |
|||||||||||
High pressure, up to ** Mpa | ** | ||||||||||||
None | 0 | Alarm point | |||||||||||
Upper Alarm | U | ||||||||||||
Down Alarm | D | ||||||||||||
Upper and Down Alarm | UD | ||||||||||||
None | 0 | Jacket | |||||||||||
Hot jacket | 1 | ||||||||||||
?? | 2 | ||||||||||||
ANSI 150# flange | SS | Connection | |||||||||||
ANSI 300# flange | S3 | ||||||||||||
PN 1.0 flange | 1 | ||||||||||||
Other connection | ** | ||||||||||||
None | N | Options | |||||||||||
With filter | FL |
