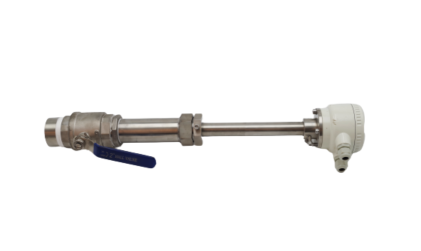

1. Introduction
    HFE61F - H plug-in electromagnetic flow meter, electromagnetic flow switch (hereinafter referred to as HFE61F - H) design selection and installation instructions to guide users to correct selection, installation, operation and maintenance of this product, and the product of form a complete set of MAG - HFE61F electromagnetic flow converter (hereinafter referred to as MAG - HFE61F) installation, maintenance, operation and programming as MAG - HFE61F electromagnetic flow converter operation instruction.

 2.Application
    HFE61F-H is used to measure the volume flow of conductive fluid in closed pipelines. It is suitable for the flow measurement and control in the production process of petrochemical industry, iron and steel metallurgy, water supply and drainage, irrigation, water treatment, environmental protection sewage total control, paper making, medicine, food and other industrial and agricultural departments.
    HFE61F-H is suitable for DN50~DN8000 pipelines, which can be used to measure and monitor the flow rate or flow rate of the fluid medium with the conductivity of no less than 20 μs /cm. The measurement of HFe61F-H is not affected by the change of fluid pressure, temperature, density and viscosity, and can also be measured with a small amount of solid particles or bubbles.

3.Characteristics
◆ Simple structure, reliable operation, easy debugging and maintenance.
◆ Compared with the conventional pipe flowmeter, the one-time input cost is low and the installation cost is less.
◆ On-line pluggable installation type can be installed and disassembled conveniently without stopping water under low pressure or with pressure.
◆ Simple installation in the existing pipeline, very suitable for the existing pipeline to increase the flow measurement and monitoring point.
◆ The measurement accuracy is not affected by the temperature, pressure, density, viscosity, conductivity (conductivity is greater than 20 μs /cm) of the medium to be measured.
◆ The sensor has almost no pressure loss and very low energy loss.
◆ Especially suitable for large and medium diameter pipeline flow measurement and control.
◆ Adopt advanced low frequency square wave excitation, stable zero point, strong anti-interference ability and reliable operation.
◆ The flow measurement range is wide, the full flow velocity in the measured pipe can be set arbitrarily from 0.5m/s to 10m/s, and the output signal is linear with the flow.

4.Type selection code table

[2]	Nominal diameter (mm)						[6]	Medium temperature
	050		350	102	262			A	≤80 ℃
	065		400	122	282			B	≤120 ℃
	080		450	142	302
	100		500	162	402
	125		600	182	502		[7]	Protection class
	150		700	202	602			1	IP65
	200		800	222	702			2	IP67 (one-body structure only)
	300		900	242	802			3	IP68 (Separate type only, need to indicate the length of the connecting cable)
	eg：150 = DN150；122 = DN1200
							[8]	Explosion-proof requirements
[3]	Nominal pressure (pressure class of riser flange ofspecified ruler mounting type)							1	No requirement
	06	0.6 MPa    (DN700 --- DN8000)
	10	1.0 MPa    (DN200 --- DN1400)
	16	1.6 MPa    (DN50 --- DN600)					[9]	Sensor and converter combined structure
	20	ANSI 150  (DN15 --- DN600)						C	monotype (ONLY DN50 --- DN1000)
	40	4.0 MPa    (DN 50 --- DN150)						R	Separate type (with 10M signal cable, other lengths can be ordered separately.)
	50	ANSI 300  (DN50 --- DN600)
	J1	JIS 10K  (DN50 --- DN300)					[10]	Power supply
	J2	JIS 20K  (DN50 --- DN300)						A	Alternating current  85---265 VAC /45---63Hz
	AA	Special pressure requirements (according to special order)						D	Direct current  16---36 VDC
	BB	On-line pluggable safety type
							[11]	Output and input signals
[1]	Installation type (specification and model)							0	Basic configuration (current output + pulse output + alarm output)
	1	Fixed size installation type（note 1） HFE61F-H-A						2	The basic configuration + RS232
	2	On-line pluggable mounting type（note 2） HFE61F-H-B-500						4	The basic configuration + RS485
	3	On-line pluggable mounting type（note 2） HFE61F-H-B-900						M	The basic configuration + MODBUS
	4	On-line pluggable mounting type（note 2） HFE61F-H-B-1200						H	The basic configuration + HART
	5	On-line pluggable mounting type（note 2） HFE61F-H-B-1500						P	The basic configuration + Profibus-DP
[4]	Electrode materials						[12]	Additional features
	1	Stainless steel  [316L]						0	No request	R	Infrared remote control
	2	Hastelloy C  [Alloy-C22]						T	Useing the timing	H	Hours total
	3	Hastelloy B  [Alloy-B10]						Q	Quantitative control	J	Relay output
	4	titanium
	5	[tantalum					[13]	The factory check
								1	Three point calibration 1.5%	T	Other requirements
								2	Five point calibration, 1.5%
[5]	Grounding method						[14]	Complementary code
	0	Body probe grounding						0	No request
Selection for	DN150、4.0MPa、Fixed size installation type、316L electrode、Body probe grounding、Medium temperature≤120℃、IP67、The explosion-proof、A shape、Ac power supply、The basic configuration +RS485、No additional functional requirements、Three point calibration、1.5%、No Supplementary Requirements。 code：HFE61F-H-1-15040110B21CA4010
