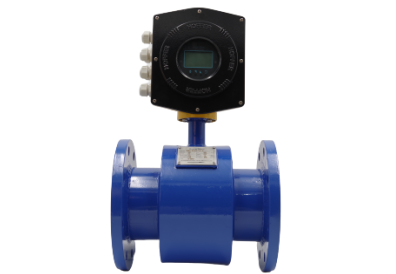

HOFFER-HFW3000 PIPE TYPE ELECTROMAGNETIC FLOWMETER

Writer： admin Time：2021-03-08 18:40 Browse： ℃

1.Introduction
HFW3000 is an economical electromagnetic mainly used in water applications (electrical conductivity <20uS/cm). The HFW3000's electronics (convertor) comes with several syles in both integral or remote configuration. Remote communication can be obtained by a base-station type radio communication network system, with the use of a base station built in the central area, coverage radius can be as long as 500m. Base stations within a closer distance (SRD mode), can be used by an opened frequency range of 928 MHz   Base stations, Modbus communication network, can transmit  data to any central office. HFW3000 is designed with an IP65 OR IP68, die-cast aluminum enclosure which is particularly applicable for damp environment or underground mines.

2.Features
   ♦Variety of lines：1/2”-120”(15-3000mm)
   ♦Flow Velocity range:0.3-6m/s
   ♦Modbus communication
   ♦Designed for clean water >20 uS/cm
   ♦IP65 OR IP68 enclosure that can be used for underground applications
   ♦CR OR PTFE Liner suitable in vacuum tube.
   ♦High accuracy of ±1.5%,±1.0%,±0.5% of reading
   ♦Empty pipe, current excitation alarms

3.Specification
   ♦Size :1/2”-120”(15-3000mm)
   ♦Measuring Range : 0.3 - 6 m/s  -bi-direction
   ♦Temperature : -20 ~ +50 Dec. C - Integral  -20 ~ +90 Deg. C - Remote
   ♦Measuring Tube : Stainless Steel 304
   ♦Flange material : Carbon Steel
   ♦Coil Housing : Carbon Steel
   ♦Liner :CR(40-3000 mm)
               PTFE(15-600 mm)
   ♦Protection : IP65 - Std   IP68 flowbody - Remote Option
   ♦Conductivity : to be more than 20 uS/cm
   ♦Electrode & Grounding :Stainless Steel 316 - standard
                                           Hastelloy C
   ♦Cable Entry : 2 X PG11
   ♦Ambient Temperature : -25 to +50 Deg. C
   ♦Connection : GB/T 9112~9124-2010
   ♦Resistance excitation :
   ♦Accuracy :150mA exciting current
   ♦Power requirements :+/-1.5% of reading - standard
   ♦Outputs : MODBUS RS-485
                    +/-1.0%, +/-0.5% of reading – Option
                     220 VAC
                     24 VDC

4.Model Selection Guide

HFW3000	***-	*-	****	*	*	*-	*****-	**-	*	Description
Integral type	IN3									Transmitter
Remote type	IN1
CR		T								Liner Material
PTFE		C
DN15~DN3000			****							Line Size (mm)
SS 316/N				S						Electrode
Hast C/N				H
SS 316/Y				E
Hast C/Y				O
Max Pressure 1.0Mpa					C					Nominal Pressure (Mpa)
Max Pressure 1.6Mpa					D
CS						1				Flange Materials
SS 304 304						3
FLOW METER							F			Meter Type
ENERGY METER							MAGEG
220 VAC								AC		Power supply
24 VDC								DC
B									B	RTD
A									A
None									N
